Full specifications
Every input, output and number.
Trinnov

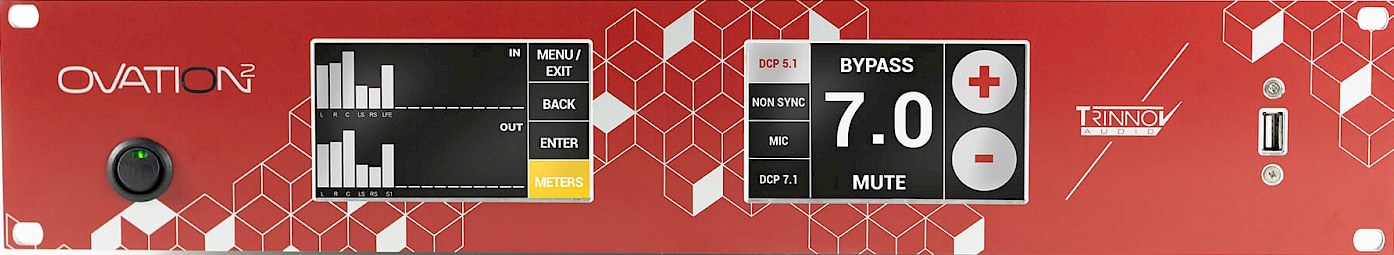

Trinnov Ovation2
Great cinema sound starts with the room. The Ovation2 measures every loudspeaker and the space around it, then aligns time, phase and frequency so the mix the filmmaker approved is the mix the audience hears.
Introduced in 2019 as the successor to the 2013 Ovation, it keeps Trinnov's guided calibration and adds dual touch screens, a re-designed power supply, and up to 24 output channels for extra subwoofers or surround speakers in a 5.1 or 7.1 room. Trinnov designs and builds its own audio boards, so fidelity stays under their control from input to output.
Analogue inputs
| Balanced inputs (DB25) | x8 |
|---|---|
| DB25 input impedance | >10k Ohm, +24 dBu max |
| Calibration mic inputs (2x RJ45) | x8 balanced |
| Balanced inputs (XLR) | x2 |
| XLR input impedance | >10k Ohm, +18 dBu max |
| Unbalanced inputs (RCA) | x2 |
| RCA input impedance | >10k Ohm, +12 dBu max |
| Mic inputs (XLR) | x2 incl. phantom power |
Analogue outputs
| Balanced outputs (2x DB25), bi/tri-amp + bass mgmt | x16 |
|---|---|
| Optional balanced outputs (1x DB25), quad-amp | up to x24 |
| DB25 output impedance | <100 Ohm, +24 dBu max |
| Hearing impaired (HI) | x1 (RCA) |
| Visual narration (VI) | x1 (RCA) |
| Auxiliary outputs | x2 (RCA) |
Digital inputs
| AES DCI (DB25) | x16 |
|---|---|
| AES DCI (RJ45) | x16 |
| SPDIF (BNC) | x2 |
| SPDIF (RCA) | x2 |
| SPDIF (Toslink) | x1 |
Control
| Web GUI, Ethernet, VNC, VGA + mouse | Yes |
|---|
Audio processing
| ADC / DAC | 24 bit / 96 kHz |
|---|---|
| A/D signal-to-noise | 119 dBA, THD+N -103 dB |
| D/A signal-to-noise | 118 dBA, THD+N -98 dB |
Decoding
| Dolby Digital | decoder (optional) |
|---|---|
| DTS | decoder and upmixer (optional) |
Hardware
| Processor | Intel multi-core CPU |
|---|---|
| Precision | 64-bit floating point |
| Hardware bypass | Yes |
Power
| Input | 100-240V auto-selecting |
|---|---|
| Consumption | 40W |
Physical
| Dimensions (W x H x D) | 438 x 138 x 430 mm |
|---|---|
| Weight | 9.8 kg |
| Rack | 2U |
Warranty
| Standard | 2 year |
|---|
What does the Trinnov Ovation2 do?
How many channels does the Ovation2 support?
Barco

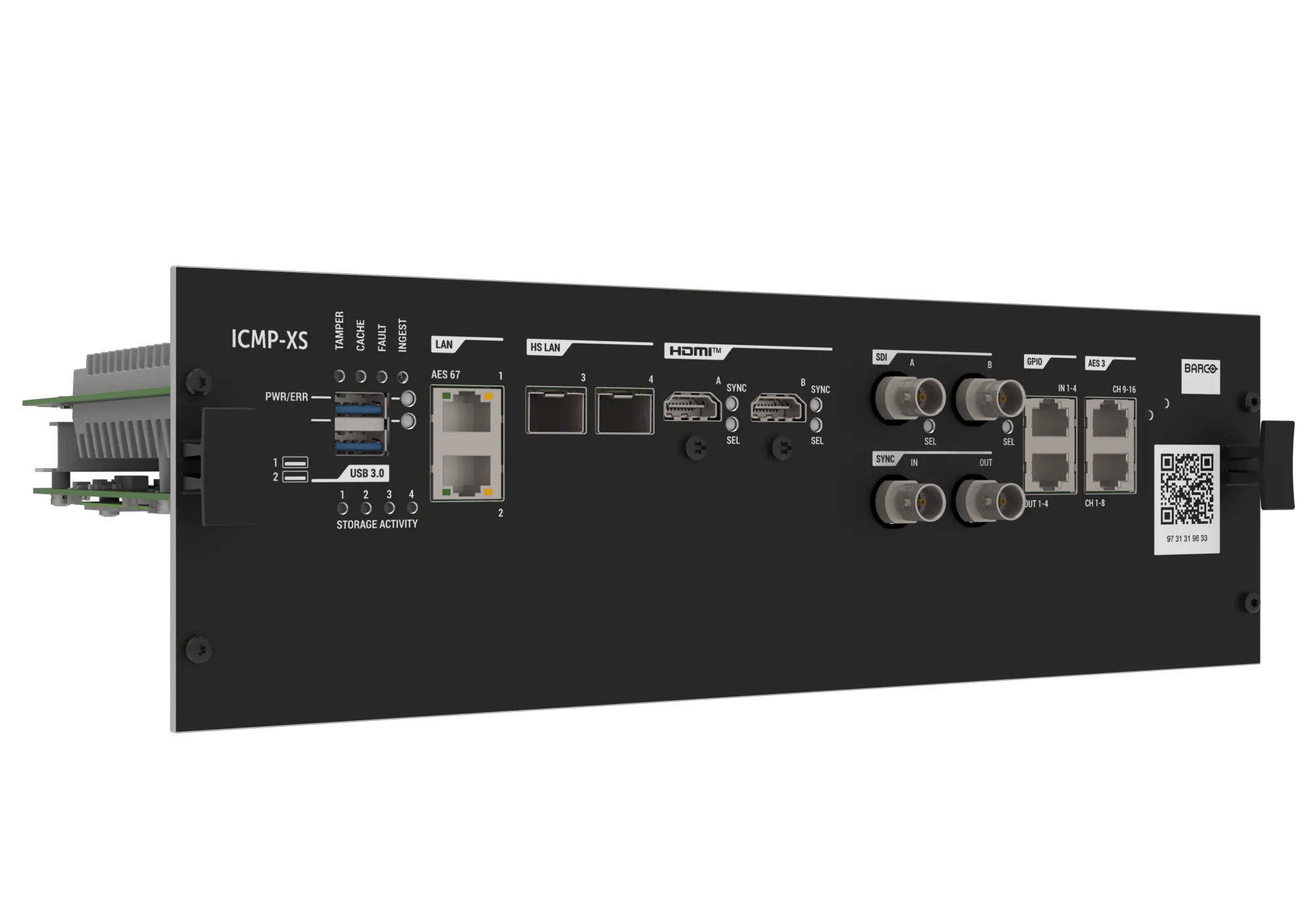

Barco mFusion ICMP-XS
One box, fewer points of failure. The mFusion ICMP-XS combines a cinema media server, a 5.1 / 7.1 audio processor and a streaming device, so a screen that used to need a rack of separate units runs from a single integrated processor.
It plays, ingests and transfers content at the same time, handles up to 2D 4K96 and 3D 4K48, and carries audio over AES3, AES67 and AoIP. It runs the same interface as the Barco Series 4 projectors, controllable from the projector's touch display, a computer or a handheld, so projection and sound share one workflow.
| 2D playback | DCI 2K 120fps, DCI 4K 96fps |
|---|---|
| 3D playback | DCI 2K 60fps, DCI 4K 48fps |
Sound
| Audio processing | 5.1 / 7.1 |
|---|
Storage
| Technology | NVMe |
|---|---|
| Integrated (RAID-5) | 2TB / 4TB / 6TB / 8TB |
Connectivity
| Control | 2x RJ45 |
|---|---|
| AES67 | 1x RJ45 |
| AES3 (16 channels) | 2x RJ45 |
| Content management LAN | 10GbE (2x SFP+) |
| USB 3.0 | 2x |
| GPIO | 4 in / 4 out (2x RJ45) |
| HDMI 2.0a | 2x |
Licenses
| Required | Audio Processing, Stream |
|---|
Control
| Interfaces | Barco WebCommunicator, SOAP API |
|---|
ICMP audio
| Amping | bi and tri amping filter configuration |
|---|---|
| Equaliser | third-octave graphic EQ bands |
| Tuning | auto and manual, up to 8 calibration microphones |
| Routing | configurable I/O routing, auto source switching, audio passthrough, USB I/O |
Compatibility
| TMS brands | AAM Screenwriter, CinemaNext TMS, OneCinema, CFG-Barco, Unique RosettaBridge, CDS CineDigital Manager |
|---|
Article numbers
| Variants | 2T (R9803647), 4T (R9803442), 6TB (R9803450), 8TB (R9803451) |
|---|
